| OUR RANGE OF MACHINES |
| |
|
| |
|
|
|

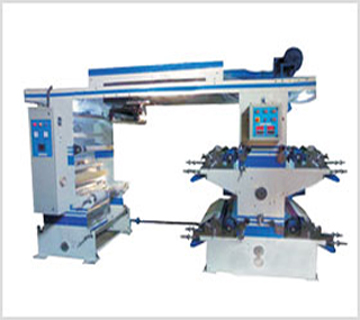

Flexographic-Printing-Machine-4 Color
We offer 2,4,6, 8 colour Flexographic Printing Machines for
Print Width from 500mm to 1500mm to print on Plastic Films LLDPE/HDPE/LDPE,
PP, BOPP, Polyester, Paper etc. |
|
Flexographic-Printing-Machine-6 Color
We offer 2,4,6, 8 colour Flexographic Printing Machines for
Print Width from 500mm to 1500mm to print on Plastic Films LLDPE/HDPE/LDPE,
PP, BOPP, Polyester, Paper etc. |
|
Technical Data for Flexographic
Printing Machine
| MODEL |
HIF
- 0624 |
HIF
- 0632 |
HIF
- 0640 |
HIF
- 0644 |
HIF
- 0648 |
| WEB WIDTH |
24"
(600mm) |
32"
(800mm) |
40"
(1000mm) |
44"
(1100mm) |
48"
(1200mm) |
| MAX.
PRINTING WIDTH |
22"
(550mm) |
30"
(750mm) |
38"
(950mm) |
42"
(1050mm) |
46"
(1150mm) |
| MIN.
PRINT. LENGTH |
10"(250mm) |
10"(250mm) |
11"(275mm) |
10"(250mm) |
10"(250mm) |
| MAX.
PRINT LENGHT (OPTIONAL) |
40"
(1000mm) |
40"
(1000mm) |
40"
(1000mm) |
40"
(1000mm) |
40"
(1000mm) |
| MAX.
PARENT REEL DIA |
30"
(750mm) |
30"
(750mm) |
30"
(750mm) |
30"
(750mm) |
30"
(750mm) |
| PRINTING
SPEED |
0-70
MTS/MIN |
0-70
MTS/MIN |
0-70
MTS/MIN |
0-70
MTS/MIN |
0-70
MTS/MIN |
| MAIN
DRIVE |
5
HDPC |
5
HDPC |
5
HDPC |
5
HP |
5
HP |
| BLOWERS |
3.5
HP |
3.5
HP |
3.5
HP |
3.5
HP |
3.5
HP |
| DRYING
HEATERS |
12
KW |
12
KW |
12
KW |
12
KW |
12
KW |
| FLOOR
SPACE REQD. |
L
W H
6M x 2.5M x 4M |
L
W H
6M x 2.5M x 4M |
L
W H
6M x 2.5M x 4M |
L
W H
6M x 2.5M x 4M |
L
W H
6M x 2.5M x 4M |
| NET WEIGHT
APPROX. |
4800
Kg. |
5500
Kg. |
7000
Kg. |
7500
Kg. |
8500
Kg. |
| DATA
subject to change without notice to incorporate latest development
& upgradation |
|
| |
|
Technical Data for Roto Gravure Printing Machine
| MODEL |
VPG-20 |
VPG-24 |
VPG-30 |
VPG-36 |
VPG-42 |
| PRINTING
WIDTH |
20"
(500mm) |
24"
(600mm) |
30"
(750mm) |
36"
(900mm) |
42"
(1050mm) |
MAIN
DRIVE/REWIND DRIVE
(DC) / (DC) 4 COLOUR |
3HP
/ 2HP |
3HP
/ 2HP |
5HP
/ 3HP |
5HP
/ 3HP |
5HP
/ 3HP |
| 6 COLOURS |
3HP
/ 2HP |
3HP
/ 2HP |
5HP
/ 3HP |
5HP
/ 3HP |
7.5HP
/ 3HP |
| 8 COLOURS |
5HP
/ 3HP |
5HP
/ 3HP |
5HP
/ 3HP |
7.5HP
/ 3HP |
7.5HP
/ 3HP |
| BLOWERS |
1
HP Per Station |
1
HP Per Station |
1
HP Per Station |
1
HP Per Station |
1
HP Per Station |
| DRYING
HEATERS |
6KW
Per Station |
6KW
Per Station |
6KW
Per Station |
6KW
Per Station |
6KW
Per Station |
| DIMENSIONS
4 COLOURS |
L
x W x H
24' x 7.5' x 6' |
L
x W x H
24' x 8' x 6' |
L
x W x H
24' x 8.5' x 6' |
L
x W x H
24' x 9' x 6' |
L
x W x H
24' x 9.5' x 6' |
| 6 COLOURS |
31'
x 7.5' x 6' |
31'
x 8' x 6' |
31'
x 8.5' x 6' |
31'
x 9' x 6' |
31'
x 9.5' x 6' |
| 8 COLUORS |
39'
x 7.5' x 6' |
39'
x 8' x 6' |
39'
x 8.5' x 6' |
39'
x 9' x 6' |
39'
x 9.5' x 6' |
| DATA
subject to change without notice to incorporate latest development
& upgradation |
|
| |
|
|
|
Rotogravure Printing
Machine
We offer 2,4,6, 8,10,12 colour Rotogravure Printing Machines
for Print Width from 500mm to 1500mm to print on Plastic Films
LLDPE/HDPE/LDPE, PP, BOPP, Polyester, Cellophane, PVC, Foil,
Paper etc. |
|
Slitter-Rewinder
Available from 600mm to 1500mm to slit Plastic Films, Tubings
of LDPE/LLDPE,HDPE,PP, Polyester, BOPP etc. |
|
| |
|
| |
|
|
|
Bag Making Machines
We offer Bottom Sealing Machines, Side Sealing Machines, Vest
Type/ T- Shirt Type Bag Making Machines, Pouch Making Machines |
|
Pneumatic
Punching Machine
To cut a square Punch for Vest Type Bags (T shirt type) &
also 'D' Punch for carry bags.
Punching Width 3" to 10" |
|
| |
|
|
|
Turn
Table Guzzetting Machine
Suitable for making Guzzett out of HM-HDPE, LDPE, LLDPE &
PP Tubings/Rolls |
|
|
| |
|
|
